Pressure Gauge

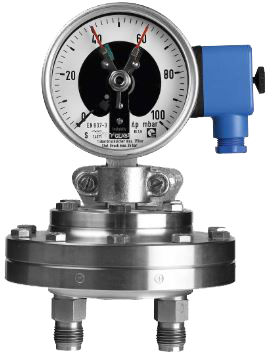

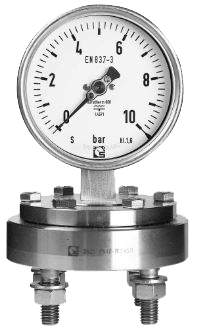

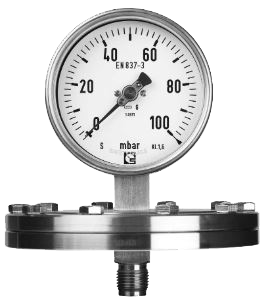

Bourdon Tube, Diaphragm, Capsule and Differential Pressure Gauge with a wide range of specification and add-on options: materials – size – pressure – seal – damping – mounting – cooling, etc to suit different industry and application.
- General and manufacturing industry
- Palm Oil Refinery for slurry and aggressive application
- Food & Beverage for hygienic and high purity application
- Oil & Gas for corrosive media
- Boiler gauges for high pressure application
- Pulp & Paper for slurry application
Thermometer

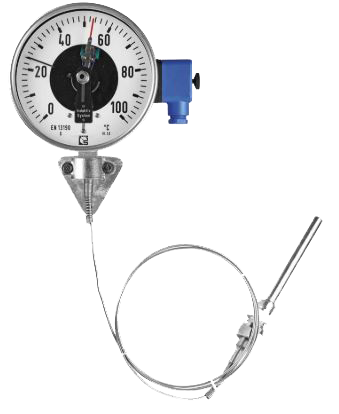

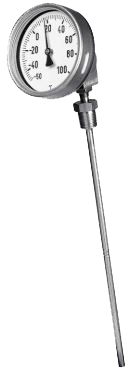

Bimetallic Dial, Gas-filled Dial & Machinery Thermometer with wide range of specification, size, length, connection and temperature range to suit differential type of installation and media.

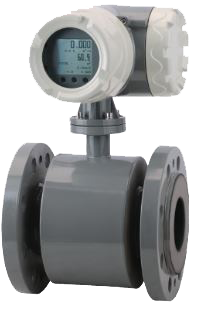

Electromagnetic Flowmeter
Electro-Magnetic flowmeter operates based on Faraday’s Law of Electromagnetic Induction. When the conductive fluid flows through a magnetic field of the sensor, an electric voltage proportional to the volume flow is generated between the pair of electrodes and transmitted to the output device. It is suitable in application such as measurement of clean conductive liquid such as potable water, municipal water, wastewater, slurries and effluent discharge.
- Diameter: DN25 – DN250
- Body: Carbon Steel WCB / SS304 / SS316
- Electrode: SS316L
- Liner: PTFE / Rubber / Polyurethane
- Accuracy: Approximate 0.5% to 1.0%
- Installation Type: Compact / Remote
- Working Temperature: Compact ( Maximum 90 degC) / Remote (Maximum 150 degC)
- Protection Class: Compact (IP65) / Remote (IP68)
- Process Connection: Wafer / Flanged
- Output Signal: 4-20mA / Frequency option with RS485 & HART
Vortex Flowmeter
Vortex flowmeter works on the principle of Karman and Strouhal where flow is measured based on the vortices created at the upstream of the flow sensor. It is suitable for measurement of steam, gas, liqud of lower viscosity.
- Diameter: DN15-DN300
- Protection Class: IP65
- Housing: SS316
- Accuracy: 0.3%
- Range Ratio: 1:3 to 1:30
- Medium Temperature: -40 degC to 300 degC
- Working Pressure: 10bar, 16bar, 25 bar
- Process Connection: Wafer / Flanged
- Output Signal: 4-20mA or frequency
